(Solved) : Question 5 3 Marks Content 4 Bit Register Initially 1001 Register Shifted Six Times Right Q44079317 . . .

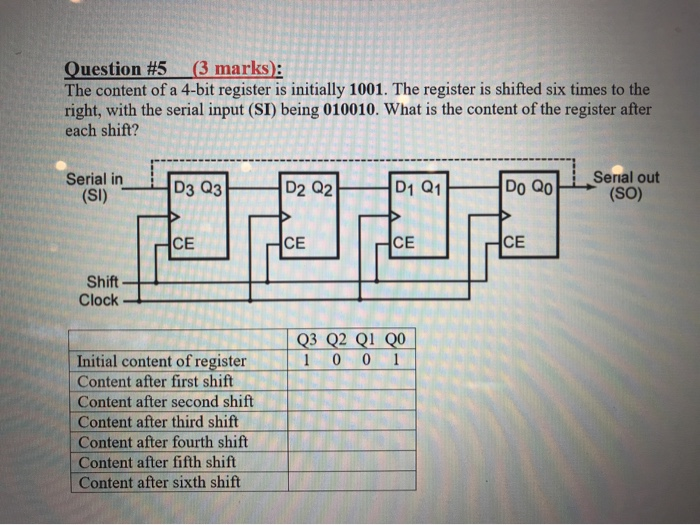

Question #5 (3 marks): The content of a 4-bit register is initially 1001. The register is shifted six times to the right, with the serial input (SI) being 010010. What is the content of the register after each shift? ——— ——— Serial in (SI) Serial in (SI) NO D1Q1 – D 2 Q2 Io D3 03 _ Dr D3 Q3 DO QO Serial out (SO) CE CE HCE LACE 1 Shift Clock – Q3 Q2 Q1 QO 1 0 0 1 Initial content of register Content after first shift Content after second shift Content after third shift Content after fourth shift Content after fifth shift Content after sixth shift Show transcribed image text Question #5 (3 marks): The content of a 4-bit register is initially 1001. The register is shifted six times to the right, with the serial input (SI) being 010010. What is the content of the register after each shift? ——— ——— Serial in (SI) Serial in (SI) NO D1Q1 – D 2 Q2 Io D3 03 _ Dr D3 Q3 DO QO Serial out (SO) CE CE HCE LACE 1 Shift Clock – Q3 Q2 Q1 QO 1 0 0 1 Initial content of register Content after first shift Content after second shift Content after third shift Content after fourth shift Content after fifth shift Content after sixth shift
Expert Answer
Answer to Question #5 (3 marks): The content of a 4-bit register is initially 1001. The register is shifted six times to the right…
