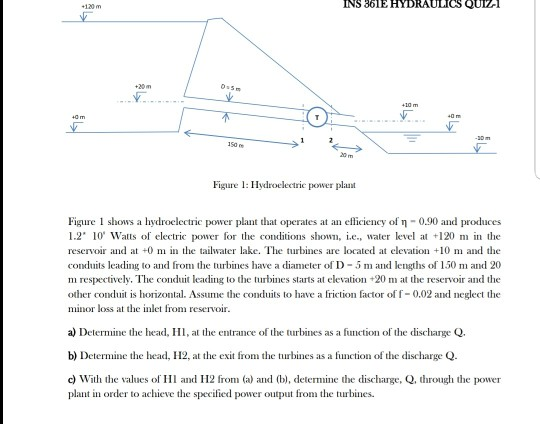

INS 361E HYDRAULICS QUIZ- 豈 2o m Figure : Hydroelectrie power plaunt Figure 1 shows a hvdroelectric power plant that operates at an efficiency of η-0.90 and produces 1.2 10 Walts of electric power for the conditions shown, i.e, water level a 120 m in the reservoir and at 0 m in the tailwater lake. The turbines are located at elevation +10 m and the conduits leading to and from the turbines have a diameter of D-5 m and lengths of 150 and 20 m respectively. The conduit leading to the turbines starts at elevation +20 the reservoir and the other condui is orizontal. Assume the conduits to have a friction factor of f-0.02 nd neglect the minor loss at the inlet from reservoir a) Detemne the head, , thentrance of the turbines as a function of the discharge Q. b) Determine the head, H2, at the exit from the turbines as a function of the discharge Q. c) With the values of H and H2 from (a) and (b), determne the discharge, Q, through the power plant in order to achieve the specified power output from the turbines Show transcribed image text
