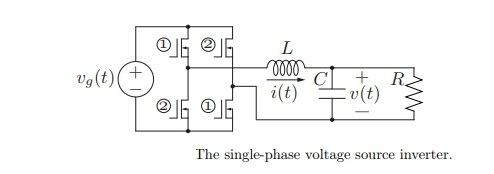

(Solved) : Input Voltage Vg T Output Voltage V T Configuration Duty Ratio D T 2 Duty Ratio D T 1 D T Q33095110 . . .

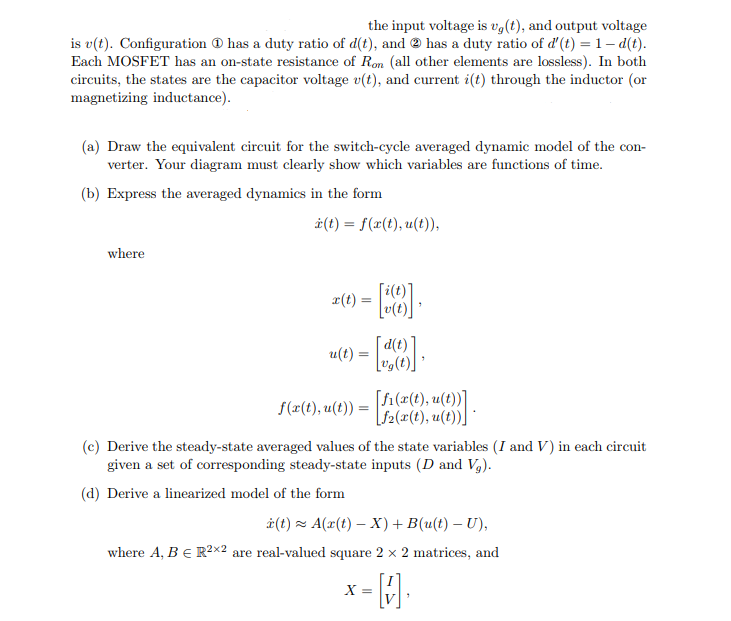

the input voltage is vg(t), and output voltage is v(t). Configuration has a duty ratio of d(t), and 2 has a duty ratio of d'(t) 1- d(t) Each MOSFET has an on-state resistance of Ron (all other elements are lossless). In both circuits, the states are the capacitor voltage v(t), and current i(t) through the inductor (or (a) Draw the equivalent circuit for the switch-cycle averaged dynamic model of the con verter. Your diagram must clearly show which variables are functions of time (b) Express the averaged dynamics in the form (t) = f(z(t), u(t)), where i(t) u(t) u(t) = |vg(t) f2(x(t), u(t) (c) Derive the steady-state averaged values of the state variables (I and V) in each circuit given a set of corresponding steady-state inputs (D and Vg). (d) Derive a linearized model of the form where A, B R2x2 are real-valued square 2 x 2 matrices, and Show transcribed image text
