(Solved) : Given Tollowing Information Code Shown 1 Arm Microprocessor Tiva Microcontroller Uses Des Q38012890 . . .
step by step

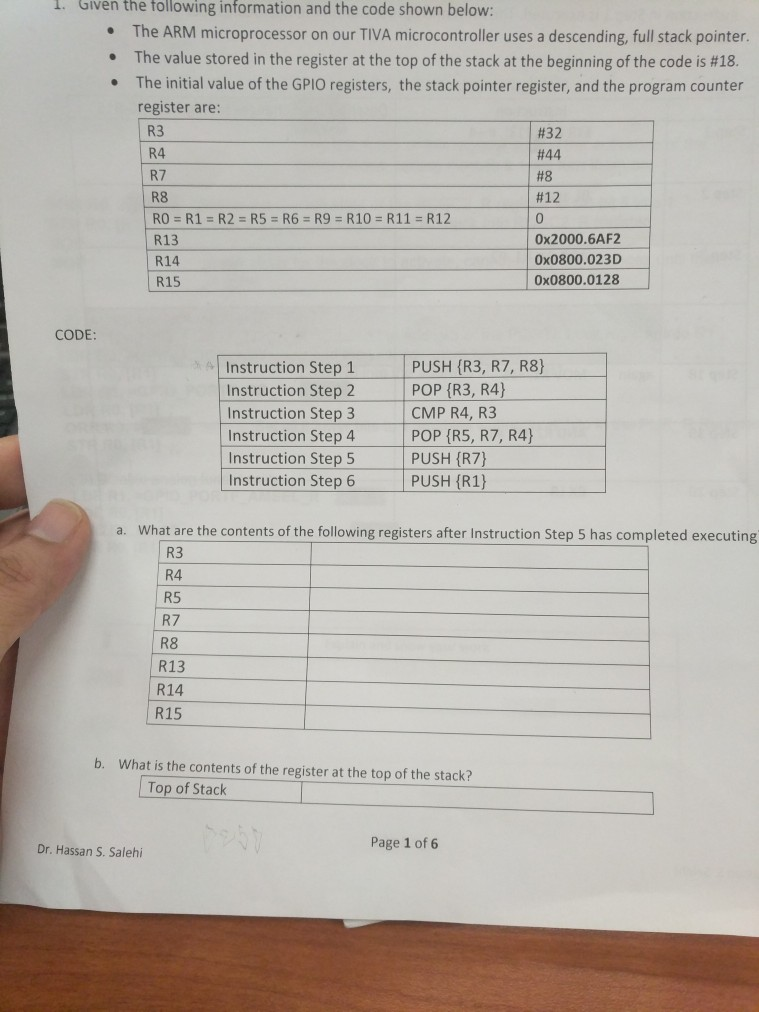

Given the tollowing information and the code shown below: 1. . The ARM microprocessor on our TIVA microcontroller uses a descending, full stack pointer. . The value stored in the register at the top of the stack at the beginning of the code is #18. The initial value of the GPIO registers, the stack pointer register, and the program counter register are: R3 R4 R7 R8 #32 #44 #12 R0 = R1 = R2 = R5 = R6 = R9 = R10 = R11 = R12 R13 R14 R15 0x2000.6AF2 0x0800.023D 0x0800.0128 CODE: Instruction Step 1 PUSH (R3, R7, R8] Instruction Step 2 POP R3, R4) instruction Step 3 CMP R4, R3 Instruction Step4 POP (RS, R7, R4) Instruction Step 5 PUSH (R7) Instruction Step 6 PUSH IR1 What are the contents of the following registers after Instruction Step 5 has completed executing a. R3 R4 R5 R7 R8 R13 R14 R15 b. What is the contents of the register at the top of the stack? Top of Stack Page 1 of 6 Dr. Hassan S. Salehi Show transcribed image text
