(Solved) : Given Open Loop Transfer Function System Kh S S S 3 S2 2s 2 Draw Manually Root Locus Plot Q32520026 . . .
Using Matlab if you could please.

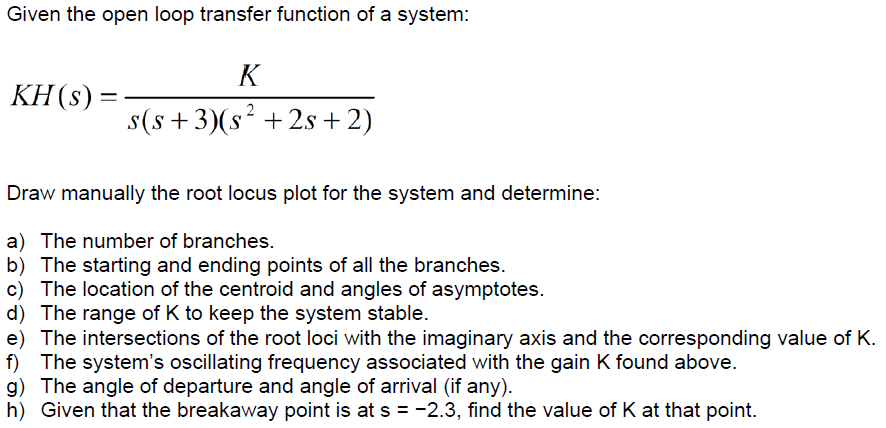

Given the open loop transfer function of a system: KH(s) s(s +3) (s2 +2s +2) Draw manually the root locus plot for the system and determine: a) The number of branches b) The starting and ending points of all the branches. c) The location of the centroid and angles of asymptotes. d) The range of K to keep the system stable. e) The intersections of the root loci with the imaginary axis and the corresponding value of K. f) The system’s oscillating frequency associated with the gain K found above. g) The angle of departure and angle of arrival (if any). h) Given that the breakaway point is at s-2.3, find the value of K at that point. Show transcribed image text
Expert Answer
Answer to Given Open Loop Transfer Function System Kh S S S 3 S2 2s 2 Draw Manually Root Locus Plot Q32520026 . . .
