(Solved) : Consider Following Reduced State Table Ss S 1 0 Ss0 S S 0 S S 01 35 Marks Use Guideline Me Q32859883 . . .

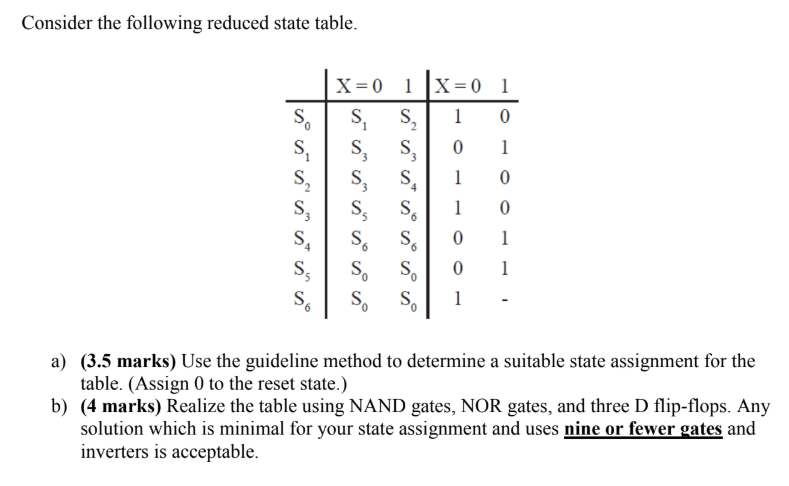

Consider the following reduced state table SS, S,1 0 SS.0 S S,0 S. S. 01 a) (3.5 marks) Use the guideline method to determine a suitable state assignment for the table. (Assign 0 to the reset state.) b) (4 marks) Realize the table using NAND gates, NOR gates, and three D flip-flops. Any solution which is minimal for your state assignment and uses nine or fewer gates and inverters is acceptable Show transcribed image text
