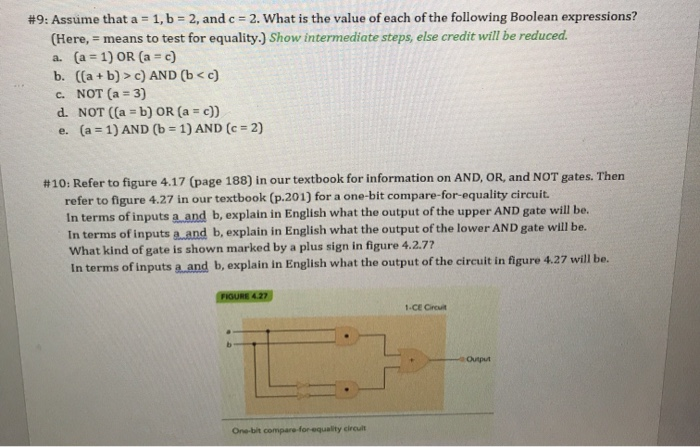

#9: Assume that a = 1, b = 2, and c = 2. What is the value of each of the following Boolean expressions? (Here, – means to test for equality.) Show intermediate steps, else credit will be reduced. a. (a = 1) OR (a = c) b. ((a+b) > c) AND (b<c) C. NOT (a = 3) d. NOT ((a =b) OR (a = c)) e. (a = 1) AND (b = 1) AND (c = 2) #10: Refer to figure 4.17 (page 188) in our textbook for information on AND, OR, and NOT gates. Then refer to figure 4.27 in our textbook (p.201) for a one-bit compare-for-equality circuit. In terms of inputs a and b, explain in English what the output of the upper AND gate will be. In terms of inputs a and b, explain in English what the output of the lower AND gate will be. What kind of gate is shown marked by a plus sign in figure 4.2.77 In terms of inputs a and b, explain in English what the output of the circuit in figure 4.27 will be. FIGURE 427 1-CE Court Оры Onebit compare for quality crew Show transcribed image text #9: Assume that a = 1, b = 2, and c = 2. What is the value of each of the following Boolean expressions? (Here, – means to test for equality.) Show intermediate steps, else credit will be reduced. a. (a = 1) OR (a = c) b. ((a+b) > c) AND (b
