(Solved) : 3 Fill Timing Diagram Falling Edge Triggered S R Lip Fop Assume O Begins 0 Clocl Fill Timi Q37288301 . . .

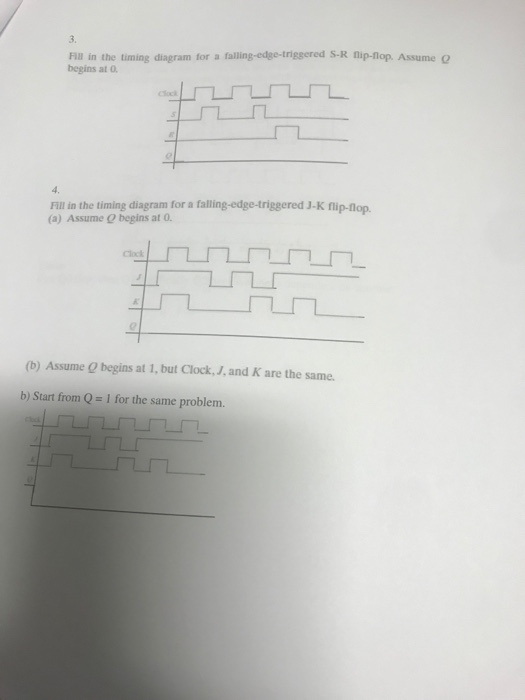

3. Fill in the timing diagram for a falling-edge-triggered S-R lip-fop. Assume o begins at 0. Clocl Fill in the timing diagram for a falling-edge-triggered J-K flip-lop. (a) Assume O begins at o Clock (b) Assume O begins at 1, but Clock, J, and K are the same b) Start from Q- 1 for the same problem. Show transcribed image text 3. Fill in the timing diagram for a falling-edge-triggered S-R lip-fop. Assume o begins at 0. Clocl Fill in the timing diagram for a falling-edge-triggered J-K flip-lop. (a) Assume O begins at o Clock (b) Assume O begins at 1, but Clock, J, and K are the same b) Start from Q- 1 for the same problem.
Expert Answer
Answer to 3. Fill in the timing diagram for a falling-edge-triggered S-R lip-fop. Assume o begins at 0. Clocl Fill in the timing d…
