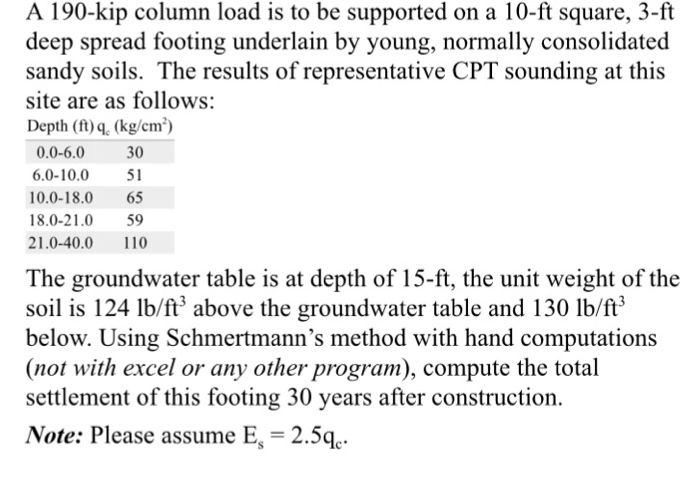

A 190-kip column load is to be supported on a 10-ft square, 3-ft deep spread footing underlain by young, normally consolidated sandy soils. The results of representative CPT sounding at this site are as follows: Depth (t)q. (kg/cm’) 0.0-6.030 6.0-10.0 51 10.0-18.0 65 18.0-21.0 59 21.0-40.0 110 The groundwater table is at depth of 15-ft, the unit weight of the soil is 124 lb/ft3 above the groundwater table and 130 lb/ft3 below. Using Schmertmann’s method with hand computations (not with excel or any other program), compute the total settlement of this footing 30 years after construction. Note: Please assume E 2.5q Show transcribed image text
Expert Answer
Answer to 190 Kip Column Load Supported 10 Ft Square 3 Ft Deep Spread Footing Underlain Young Normal Q32396647 . . .
