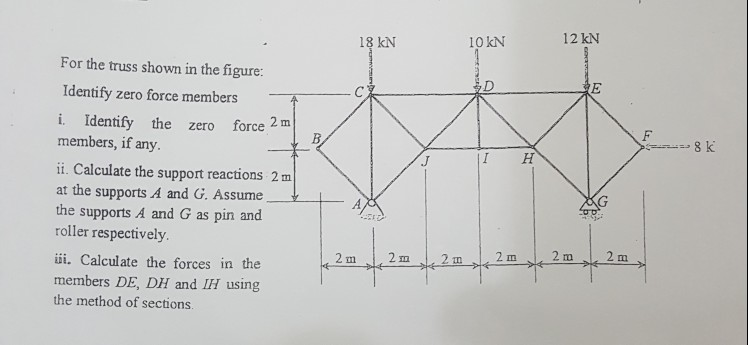

18 kN 10 kN 12 kN For the truss shown in the figure: Identify zero force members i. Identify the zero force 2 m members, if any. I H ii. Calculate the support reactions 2 m at the supports A and G. Assume the supports A and G as pin and roller respectively 2 m 2 m ii. Calculate the forces in the members DE, DH and IH using the method of sections
