(Solved) : 10 Access Control Lists Acls Sequential Collection Permit Deny Conditions Packets Packet R Q34214460 . . .
![]()

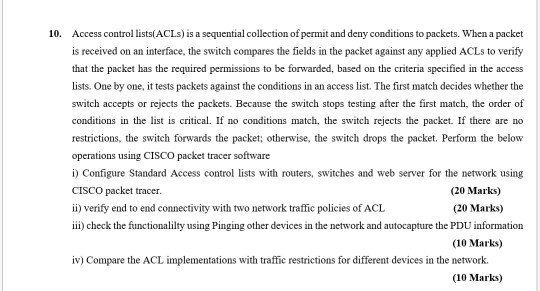

10. Access control lists(ACLs) is a sequential collection of permit and deny conditions to packets. When a packet is received on an interface, the switch compares the fields in the packet against any applied ACLs to verify that the packet has the required permissions to be forwarded, based on the criteria specified in the access lists. One by one, it tests packets against the conditions in an access list. The first match decides whether the switch accepts or rejects the packets. Because the switch stops testing after the first match, the order of conditions in the list is critical. If no conditions match, the switch rejects the packet. If there are no restrictions, the switch forwards the packet; otherwise, the switch drops the packet. Perform the below operations using CISCO packet tracer software i) Configure Standard Access control lists with routers, switches and web server for the network using CISCO packet tracer. ii) verify end to end connectivity with two network traffic policies of ACL iii check the functionalilty using Pinging other devices in the network and autocapture the PDU information (20 Marks) (20 Marks) (10 Marks) iv) Compare the ACL implementations with traffic restrictions for different devices in the network. (10 Marks) Show transcribed image text
Expert Answer
Answer to 10 Access Control Lists Acls Sequential Collection Permit Deny Conditions Packets Packet R Q34214460 . . .
