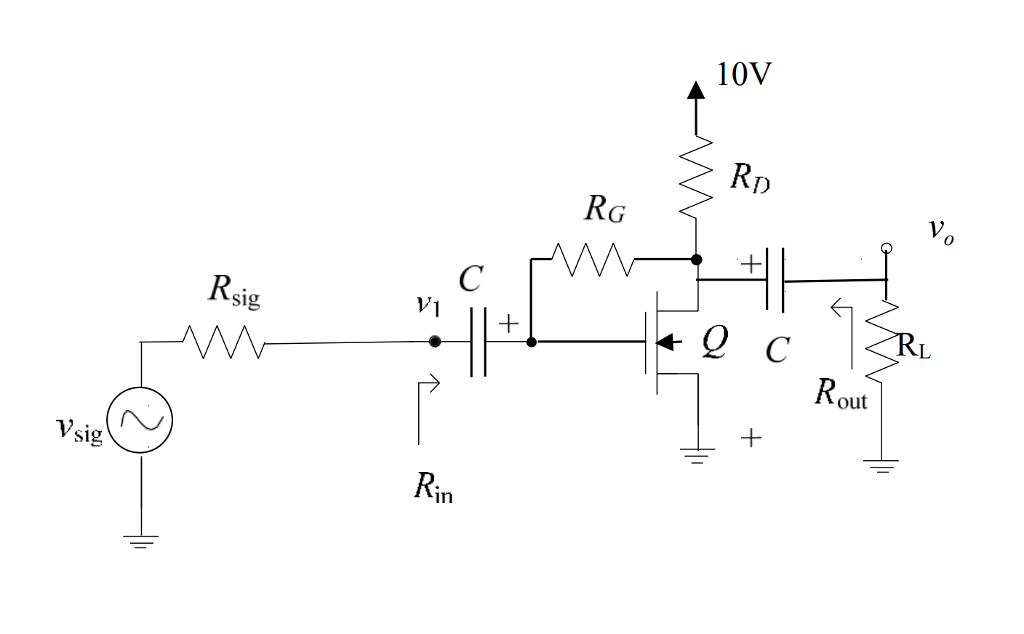

1. [2 pts.] Compute the small-signal voltage gain and the ACinput and output resistances (Rin and Rout, respectively) for thecircuit shown in Fig. 1 using the specified component values inpart 1 of the lab experiments. Assume Vth = 1.5 V, kn’ W / L = 1mA/V2 and λ = 0.0333 V -1 .
RD = RL = 10 kΩ, RG = 10 MΩ, and C = 10 µF
First simple Vo & Vi equations if possible.Please show all work and work neatly.
10V Rp RG Rsig V1 out S1g Rin Show transcribed image text
Expert Answer
Answer to 1 2 Pts Compute Small Signal Voltage Gain Ac Input Output Resistances Rin Rout Respectivel Q33095643 . . .
