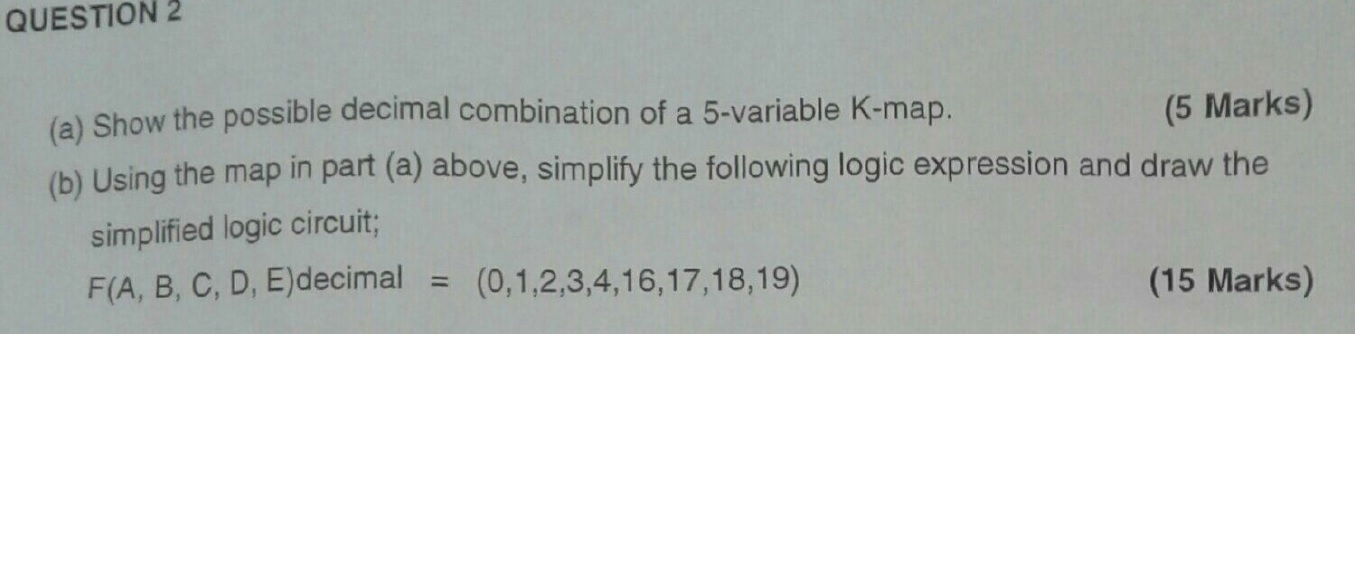

QUESTION 2 (a) Show the possible decimal combination of a 5-variable K-map. (5 Marks) (b) Using the map in part (a) above, simplify the following logic expression and draw the simplified logic circuit; F(A, B, C, D, E)decimal = (0,1,2,3,4,16,17,18,19) (15 Marks) Show transcribed image text QUESTION 2 (a) Show the possible decimal combination of a 5-variable K-map. (5 Marks) (b) Using the map in part (a) above, simplify the following logic expression and draw the simplified logic circuit; F(A, B, C, D, E)decimal = (0,1,2,3,4,16,17,18,19) (15 Marks)
