Following Problem Sets Use Expanded Set List Opcodes Hypothetical Machine 0001 Load Ac Mem Q43884092

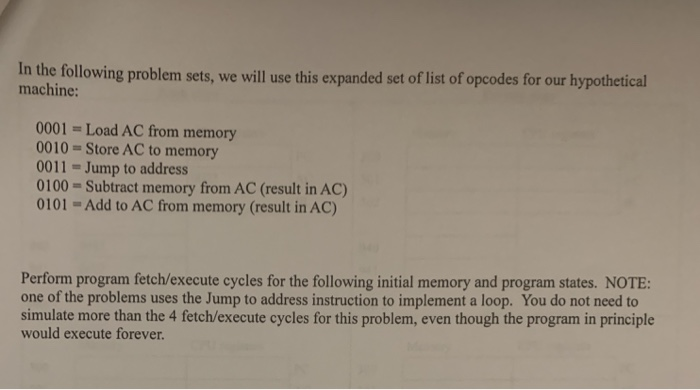

in the following problem sets, we will use this expanded set of list of opcodes for our hypothetical machine: 0001 = Load AC from memory 0010 = Store AC to memory 0011 – Jump to address 0100 – Subtract memory from AC (result in AC) 0101 – Add to AC from memory (result in AC) Perform program fetch/execute cycles for the following initial memory and program states. NOTE: one of the problems uses the Jump to address instruction to implement a loop. You do not need to simulate more than the 4 fetch/execute cycles for this problem, even though the program in principle would execute forever. Memory CPU registers Memory CPU registers 2 5940 4941 3301 940 941 0005 0001 Step 1 Memory CPU registers CPU registers Step 3 CPU registers CPU registers Memory 941 CPU registers Memory CPU registers Show transcribed image text in the following problem sets, we will use this expanded set of list of opcodes for our hypothetical machine: 0001 = Load AC from memory 0010 = Store AC to memory 0011 – Jump to address 0100 – Subtract memory from AC (result in AC) 0101 – Add to AC from memory (result in AC) Perform program fetch/execute cycles for the following initial memory and program states. NOTE: one of the problems uses the Jump to address instruction to implement a loop. You do not need to simulate more than the 4 fetch/execute cycles for this problem, even though the program in principle would execute forever.

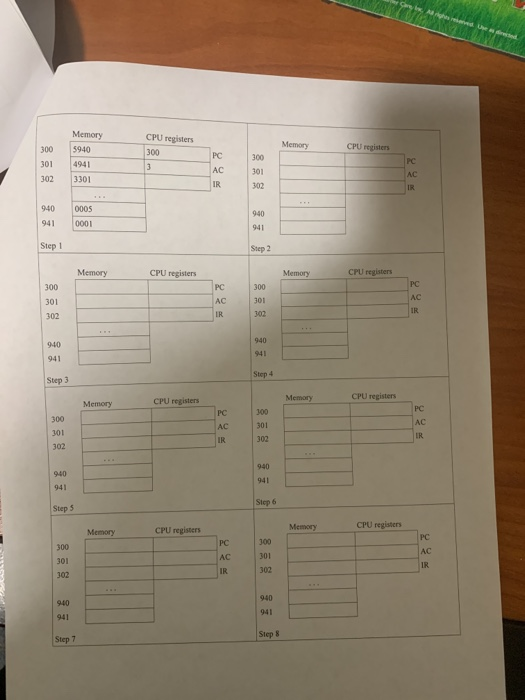

Memory CPU registers Memory CPU registers 2 5940 4941 3301 940 941 0005 0001 Step 1 Memory CPU registers CPU registers Step 3 CPU registers CPU registers Memory 941 CPU registers Memory CPU registers
Expert Answer
Answer to in the following problem sets, we will use this expanded set of list of opcodes for our hypothetical machine: 0001 = Loa…
