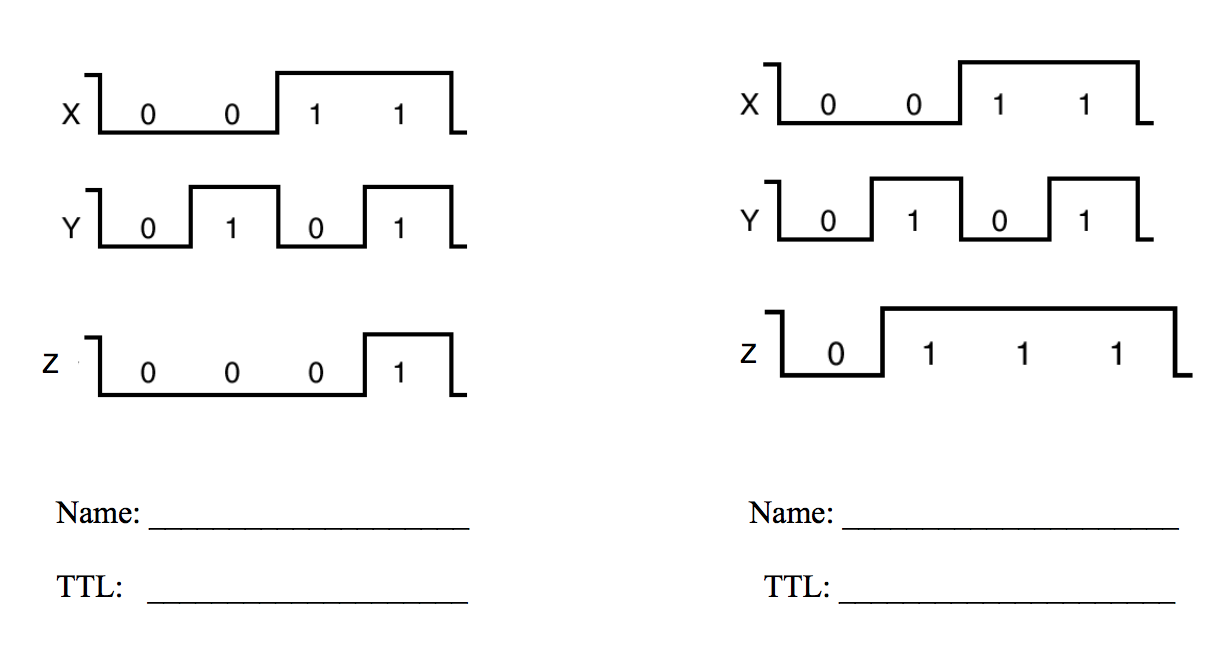

Consider the waveforms below for two particular gates. The gatesin question have two inputs, X and Y, and one output, Z. Based ontheir waveforms, identify the gates by name and by TTL ICnumber![ܙ ܢ. .]x |||ܝ|| |.; xo o 1 xl.: .[; ,]. ..] ܙ ܙ ܙ |.zl Narme: Name: - Name: TTI: TTL: TTL:](https://media.cheggcdn.com/media/424/424fbc70-f4c5-42e5-ae79-19cdea78f62f/phpsyiE7b.png)
ܙ ܢ. .]x |||ܝ|| |.; xo o 1 xl.: ‘.[; ,]. ..] ܙ ܙ ܙ |.zl Narme: Name: – Name: TTI: TTL: TTL: Show transcribed image text ܙ ܢ. .]x |||ܝ|| |.; xo o 1 xl.: ‘.[; ,]. ..] ܙ ܙ ܙ |.zl Narme: Name: – Name: TTI: TTL: TTL:
Expert Answer
Answer to Consider the waveforms below for two particular gates. The gates in question have two inputs, X and Y, and one output, Z…
OR
